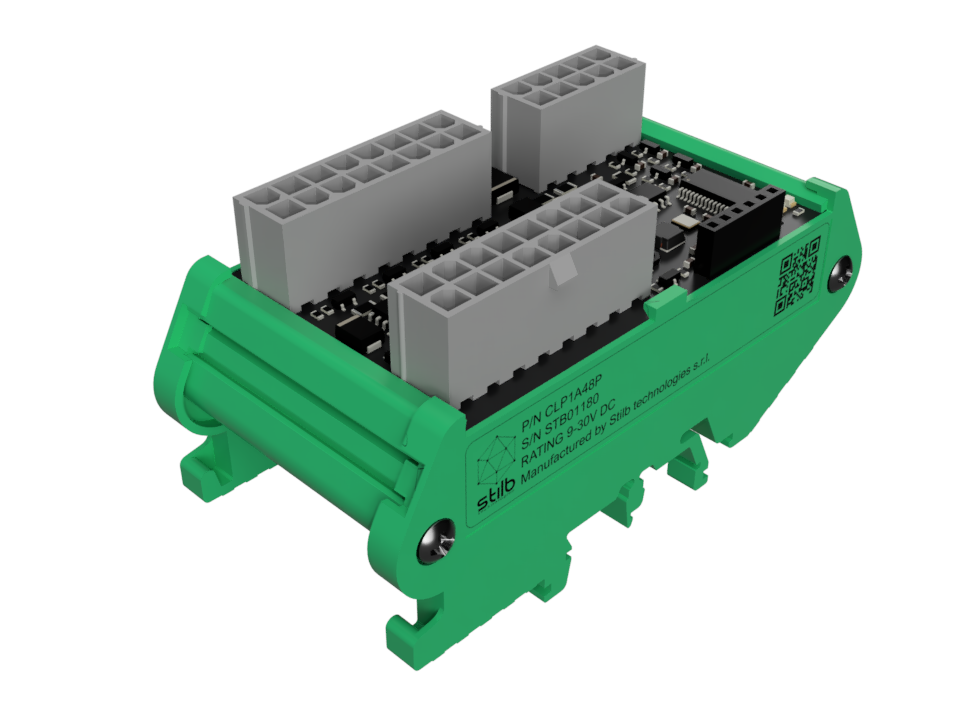

I/O controller – CLP1A48P

CLP1A48P

I/O Controller

Compact PLC module

CLP1A48P is a generic IO control board designed to provide reliable and flexible control of various industrial and automation applications. Its compact dimensions of 93x48x48mm make it ideal for applications with limited space, while its robust construction allows it to operate reliably in harsh environments.

  • CLP1A48P operates within a supply voltage range of 9 to 30V, making it compatible with a wide range of power sources
  • The control board also includes 1x Digital output that supports 4A high-side PWM, as well as 8x Digital outputs that support 1A low-side PWM. These outputs enable the board to control various digital devices, such as solenoids, motors, and lights, with high accuracy and precision
  • 4A of maximum current sourcing capacity of and 8A of maximum current sinking capacity
  • CAN 2.0B compliant interface, which can communicate at speeds of up to 1Mb/s. This enables it to communicate with other devices in the system, such as sensors, actuators, and controllers, and exchange data in real-time

Downloads

DATASHEET

Technical specifications

Part numberCLP1A48P
Dimensions (HxLxW)93 x 48 x 48mm
Supply voltage9 – 30 V
Max current sourcing4A
Max current sinking8A
Operative temperature-20 / 85°C
Ingress protectionIP00
Inputs4x Analog input (0-30V)
Outputs1x Digital output 4A high-side PWM
8x Digital output 1A low-side PWM
Interfaces1x CAN 2.0B compliant up to 1Mb/s

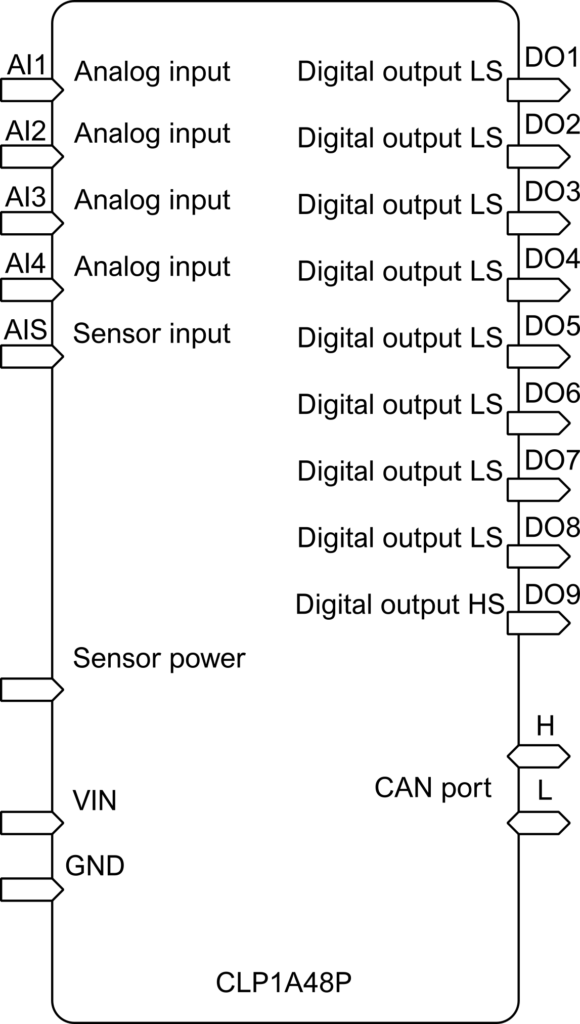

Block diagram

Dimensions
