I/O Controller STSLV6P2N2C222


Powerful control unit, up to 12 inputs, 8 outputs, CAN and RS485 connectivity.

Controller for a wide range of applications

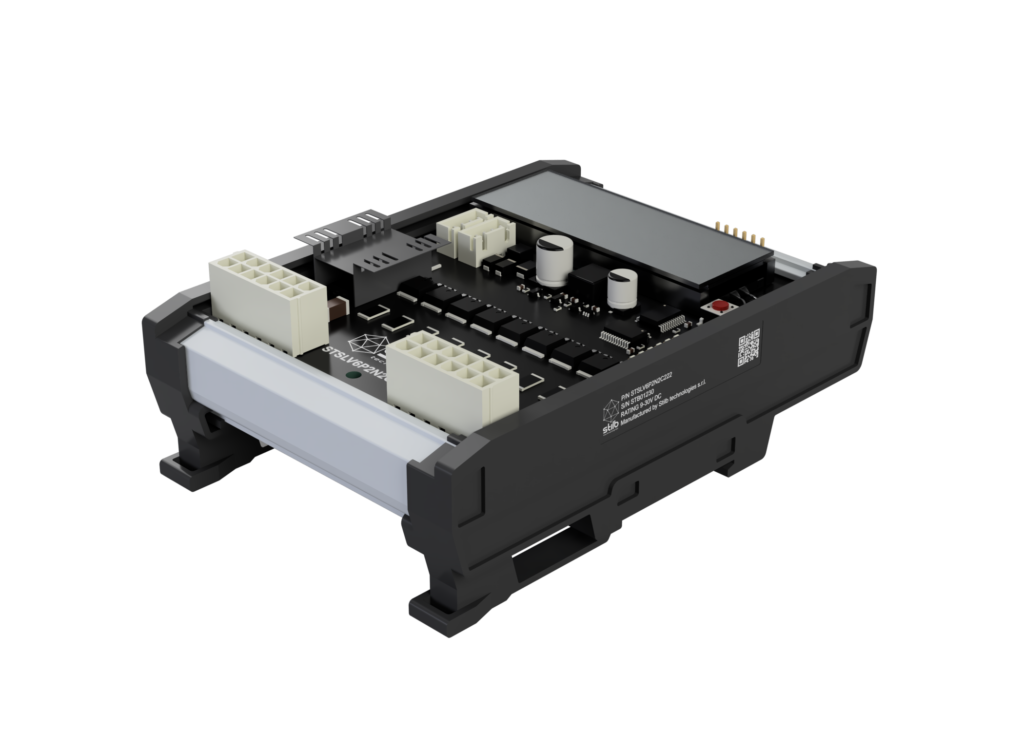

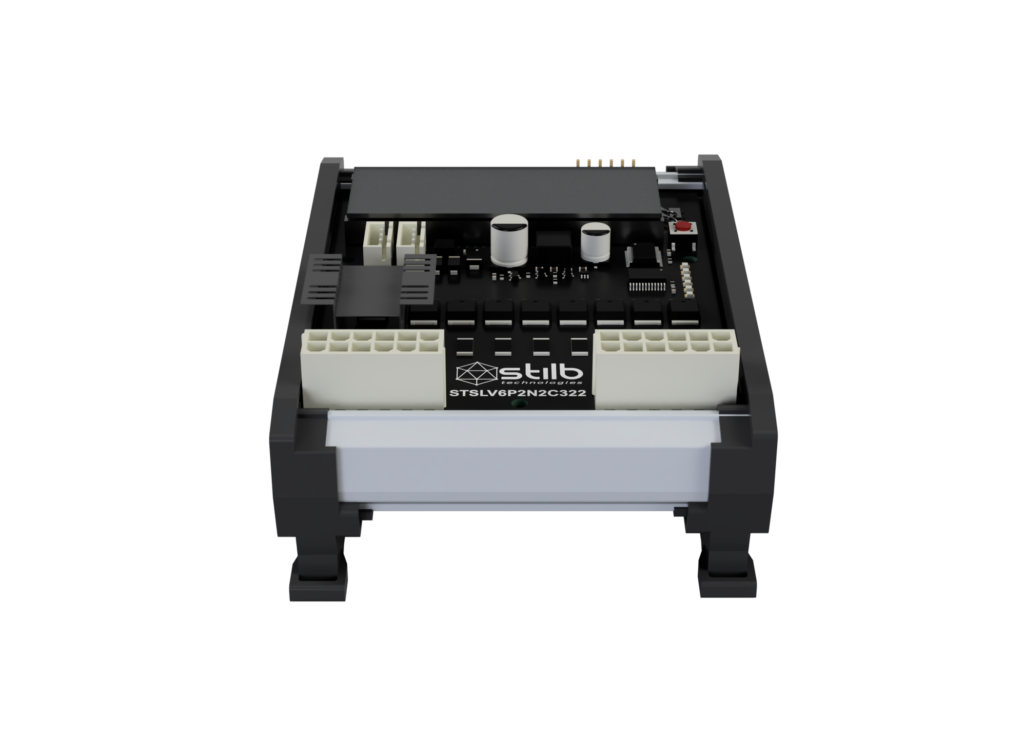

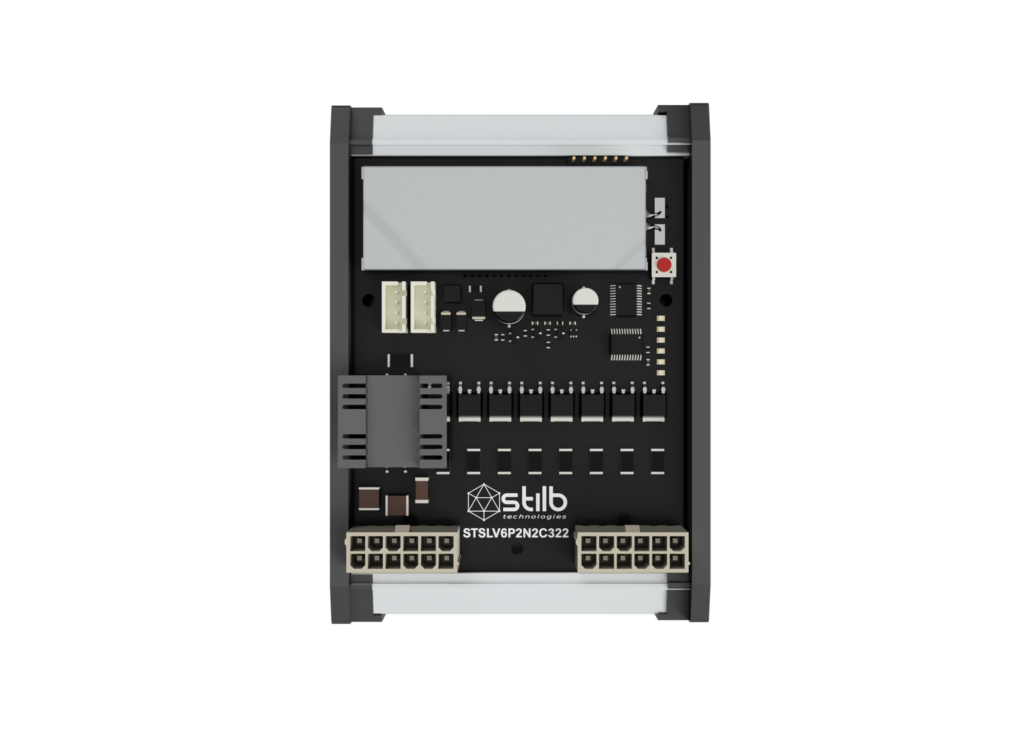

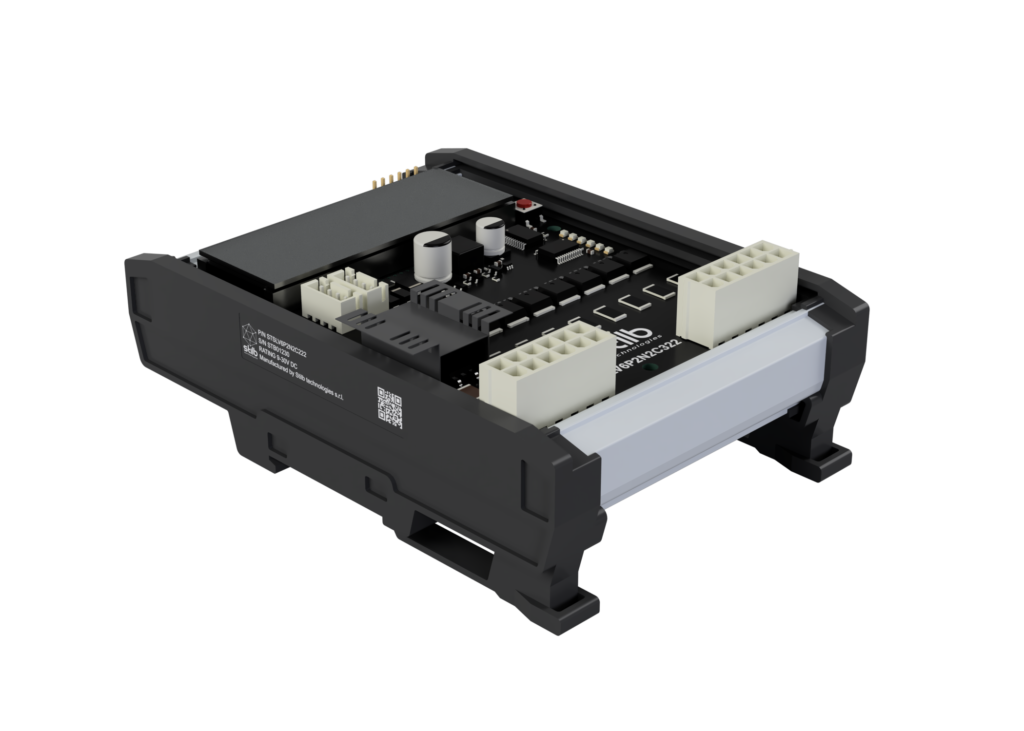

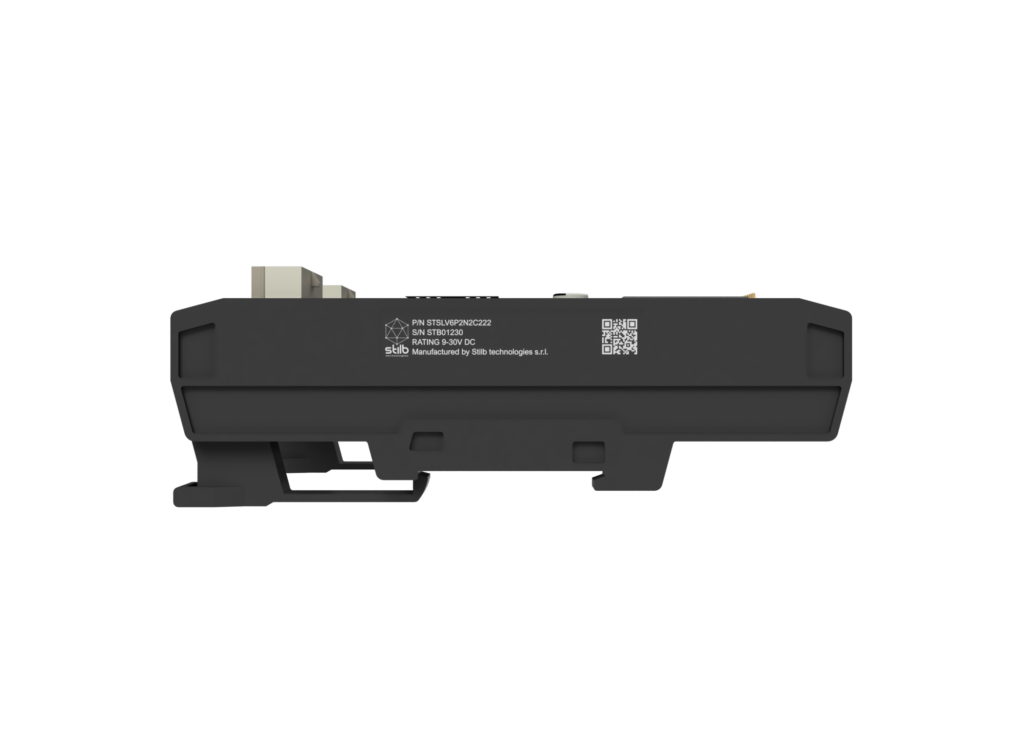

Equipped with a Cortex® M4 microcontroller to manage complex operating logics, the electronics are housed in a enclosure, which allow installation on DIN rails.

STSLV6P2N2C222 has 6 high-side outputs and 2 low-side outputs with error detection, 4 digital inputs, 2 analog inputs 2 CAN ports and 1 RS485 port (alternative to second CAN).

The controller module monitor its outputs continuously for fault information. Detected faults include short circuit (to ground or power), over currents and open load. In the event of a fault, the units will disable the output(s) that are faulted.

  • Outputs with closed-loop current and voltage sensing
  • Designed for 12V and 24V applications
  • Configurable inputs and outputs for customizing controller to each application
  • Combining 4x outputs (2x high side and 2x low side) for H-bridge motor control
  • Wide operating temperature from -20°C to 85°C
  • Supply input with reverse polarity protection

Technical Specifications

Part numberSTSLV6P2N2C222
Dimension(HxLxW)126 x 90 x 48mm
Supply voltage9 – 36V
Operative temperature-20 / +85°C
Ingress protectionIP00
Inputs4x Inputs configurable as digital, frequency, PWM or a quadrature encoder
2x Analog inputs (0-36V)
Outputs6x Digital outputs PWM 8A high-side
2x Digital outputs PWM 8A low-side
Max current sourcing24A
Max current sinking16A
Interfaces2x CAN 2.0 A-B compliant up to 1Mb/s
1x RS485
1x RF 433 – 868MHz radio module (optional)
