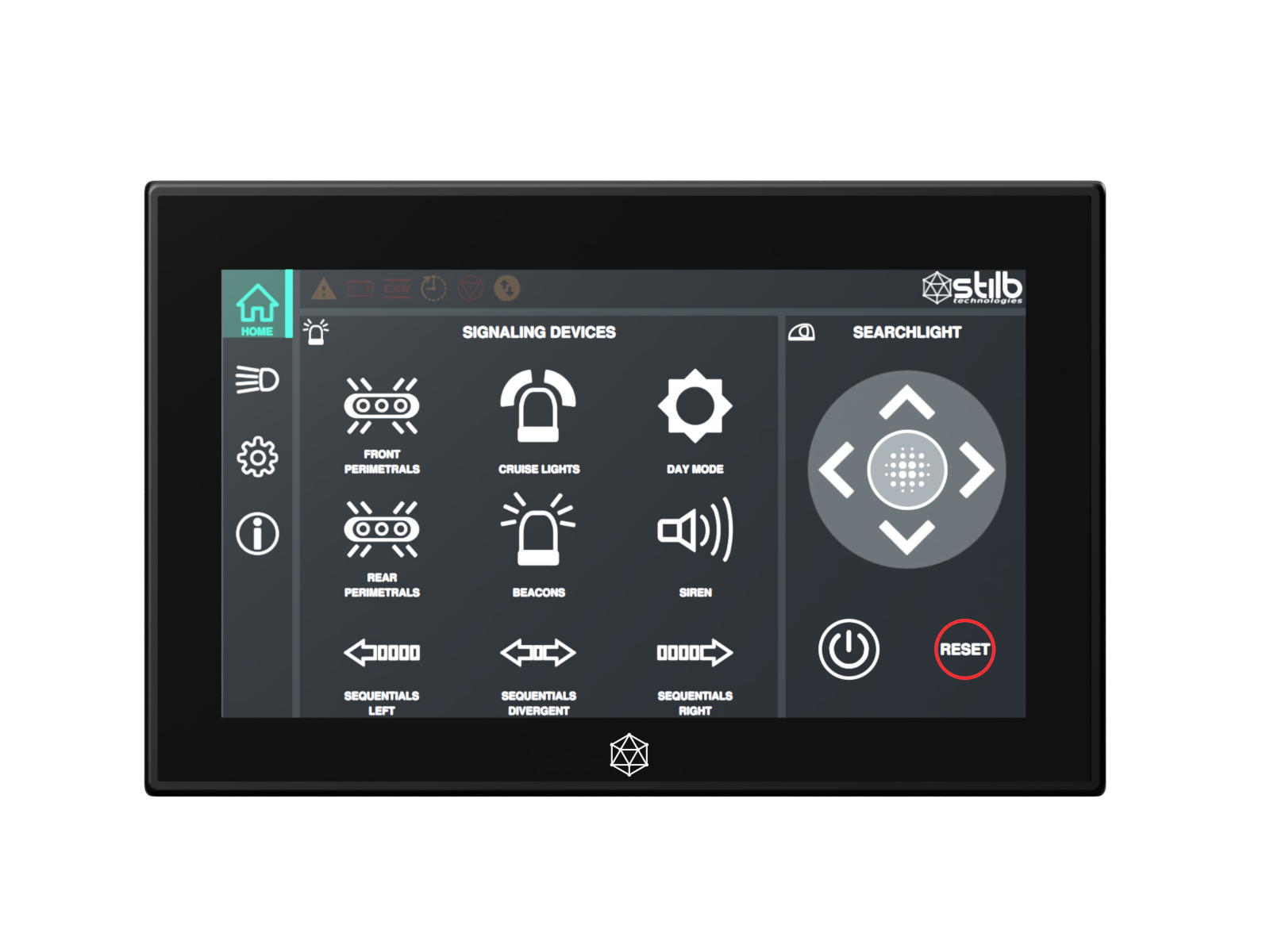

EV7_front

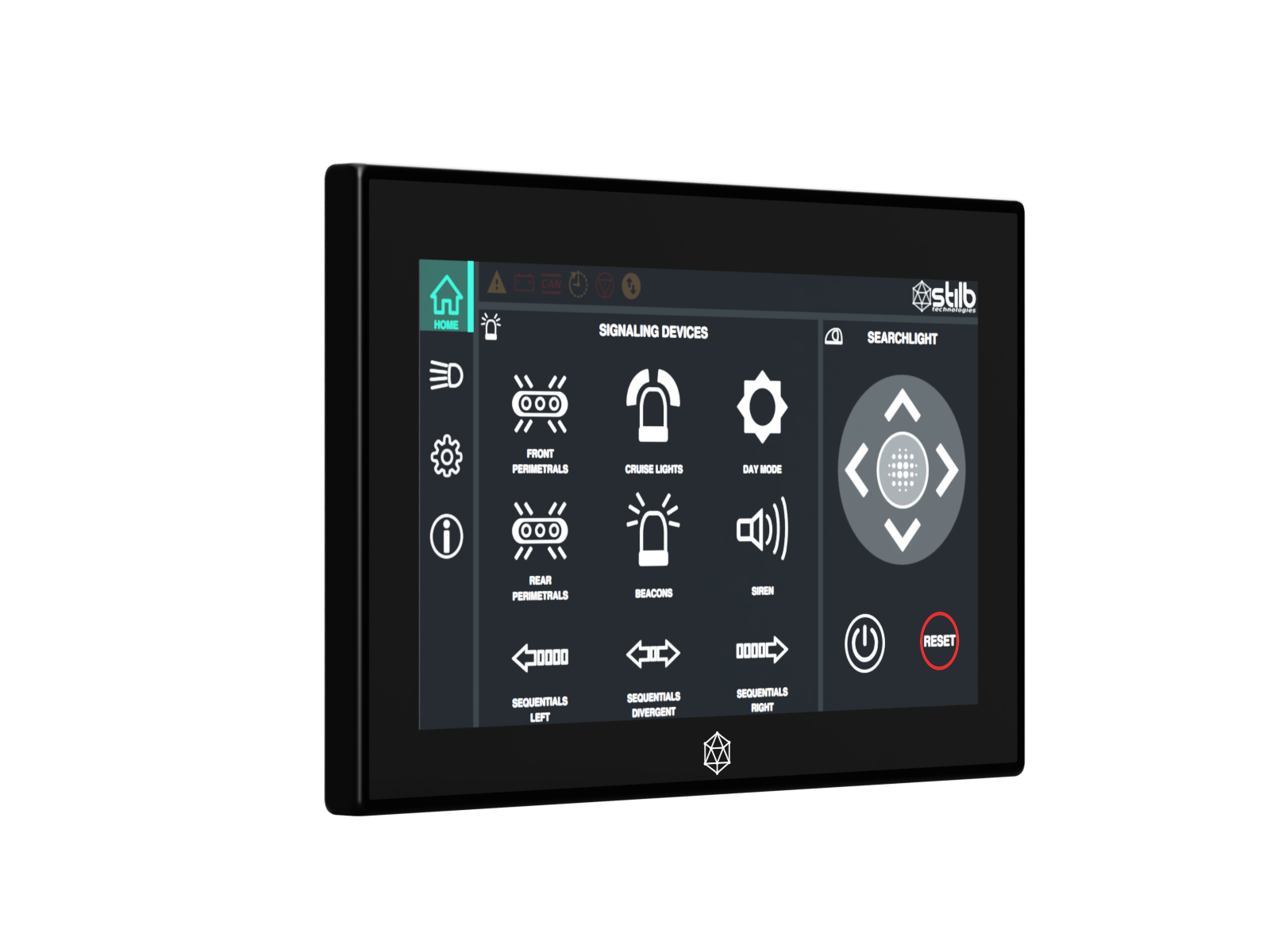

EV7_front-left

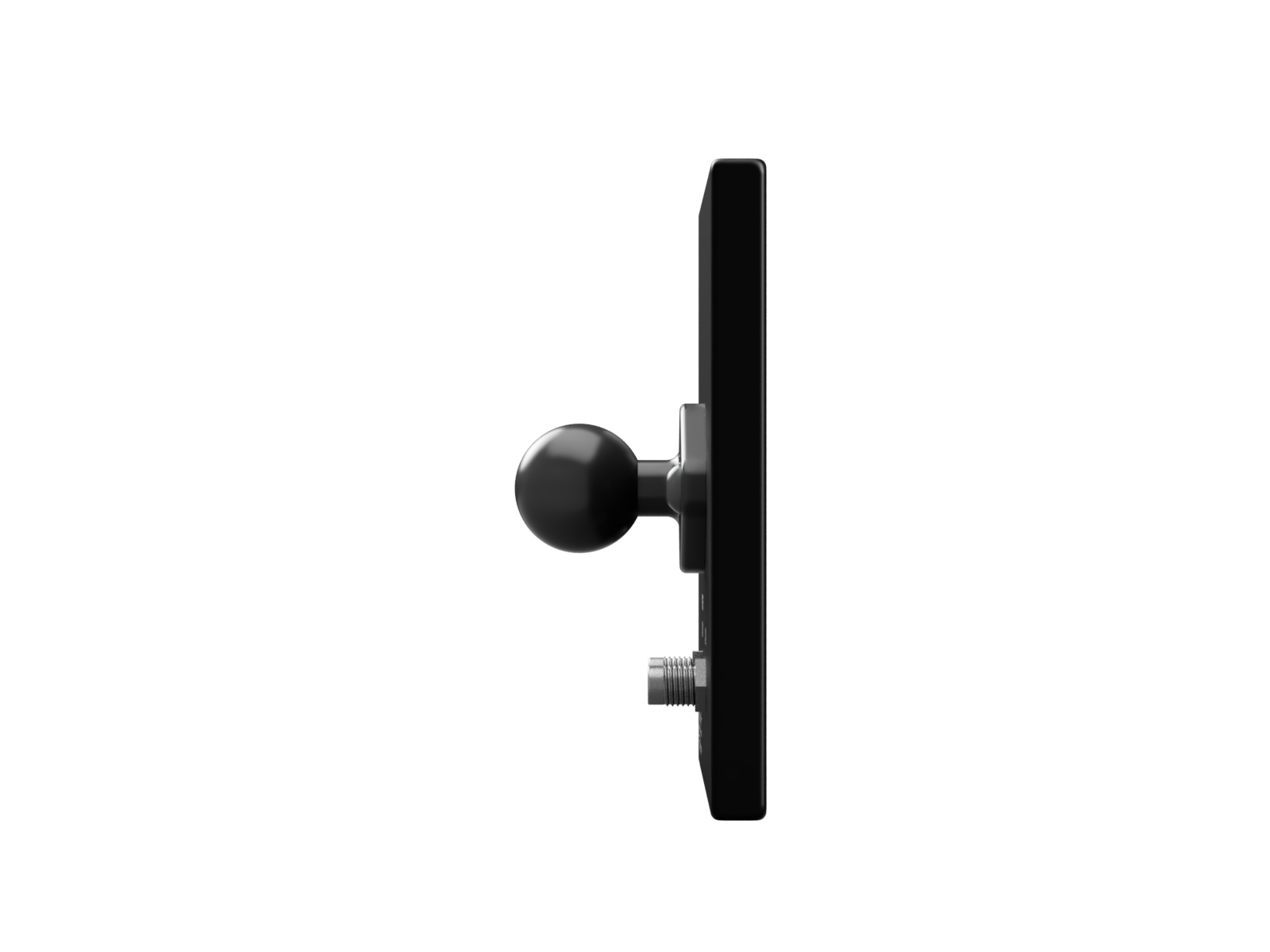

EV7_left

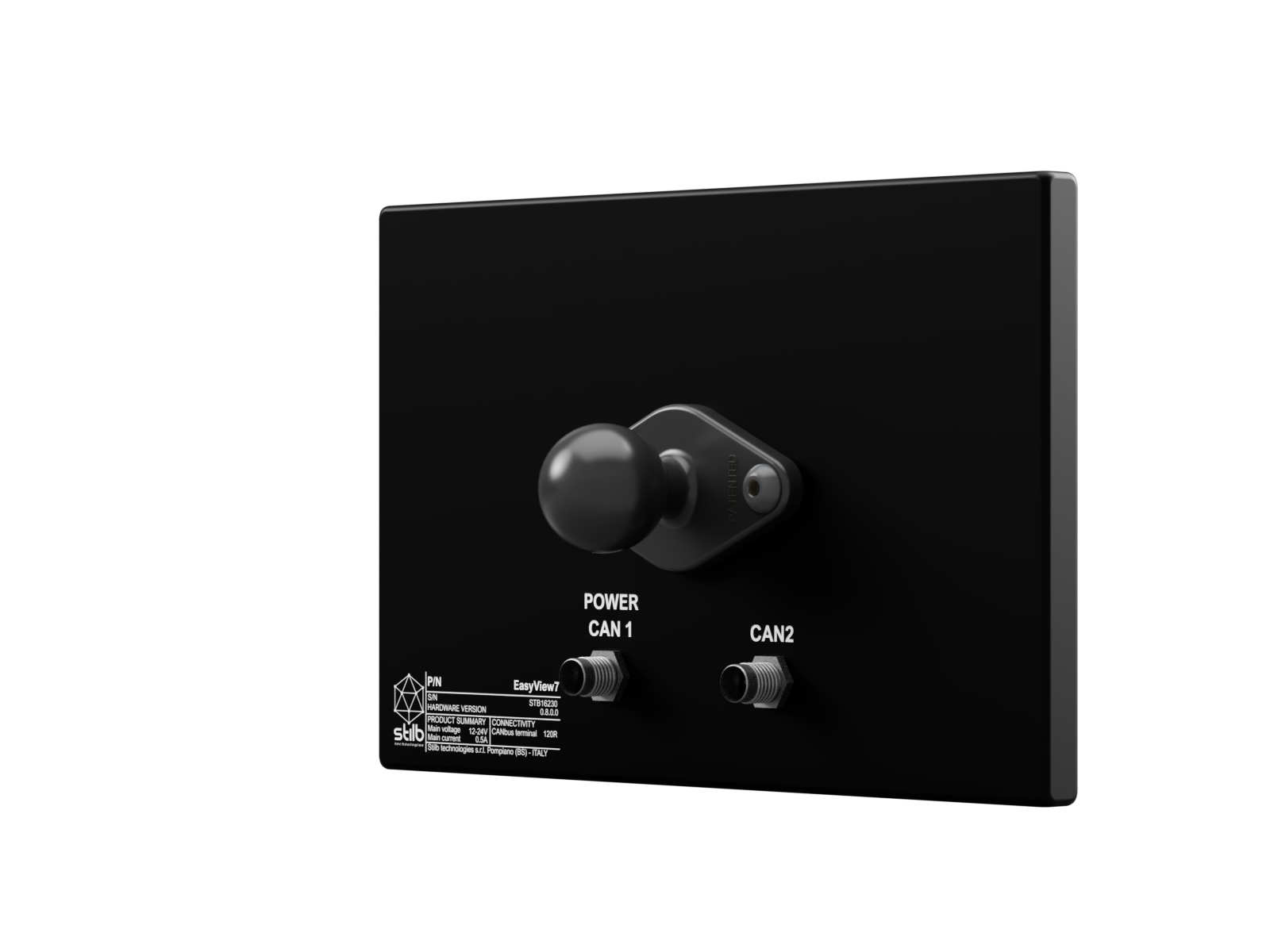

EV7_back-left

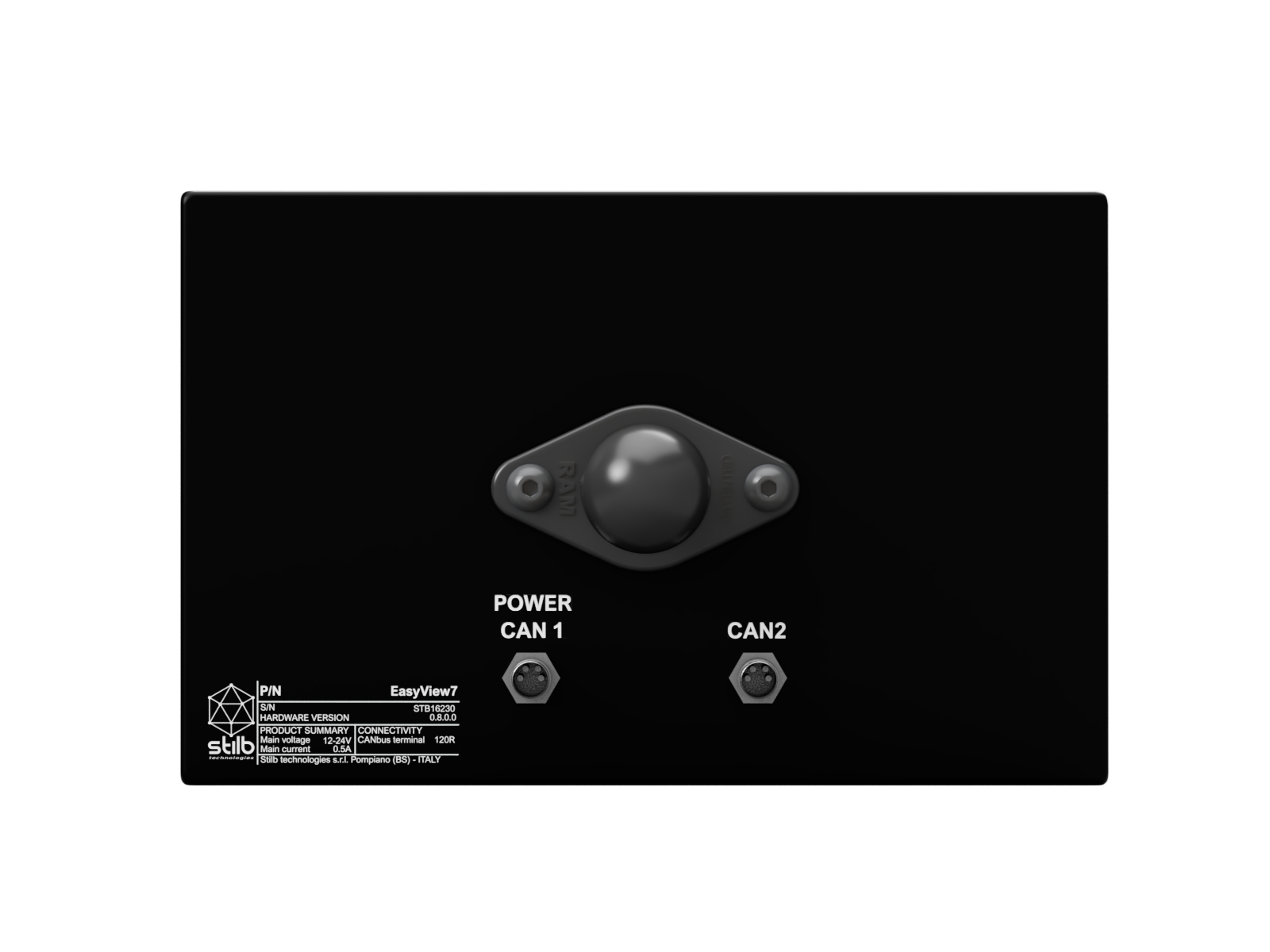

EV7_back

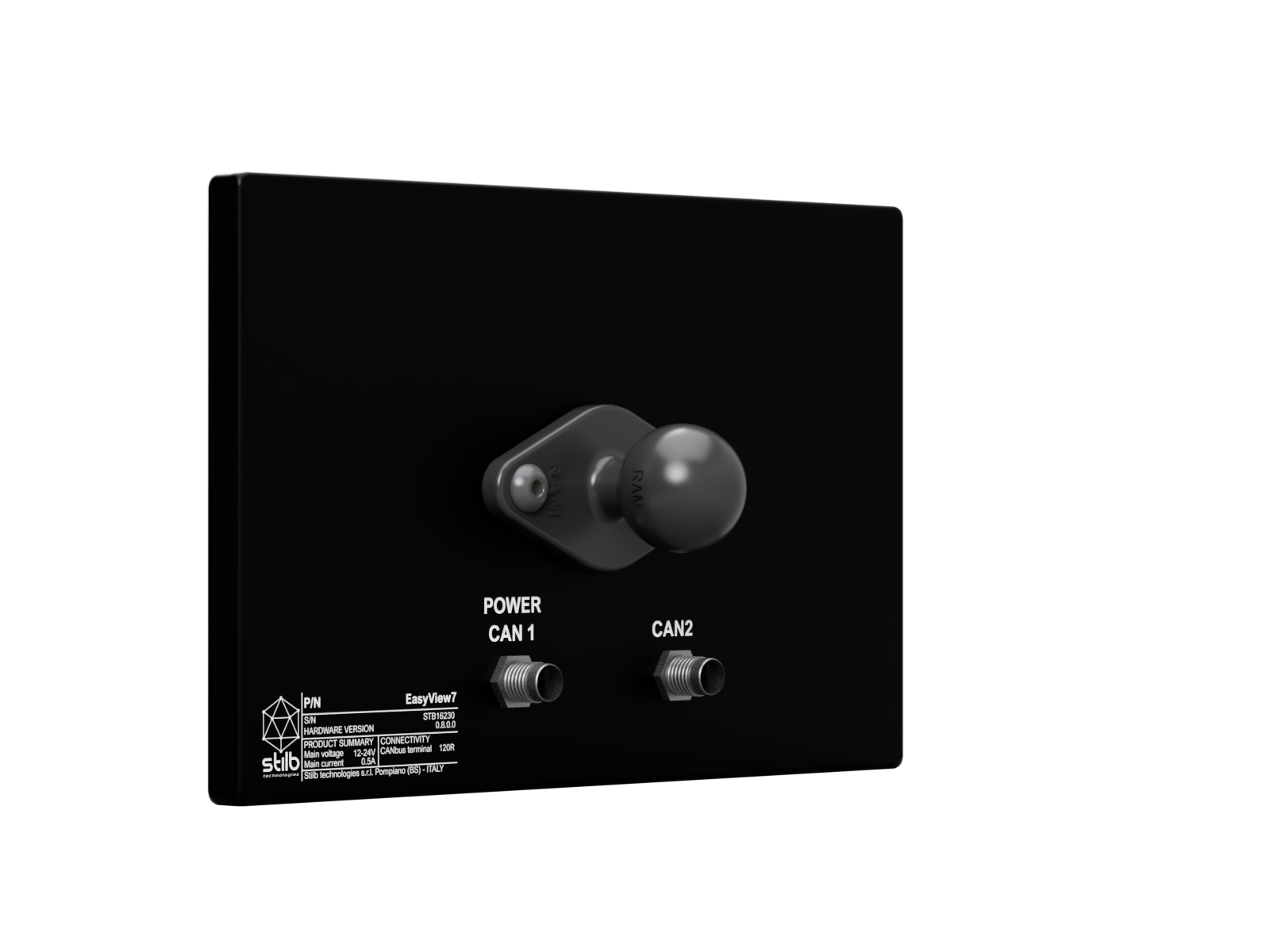

EV7_back-rigth

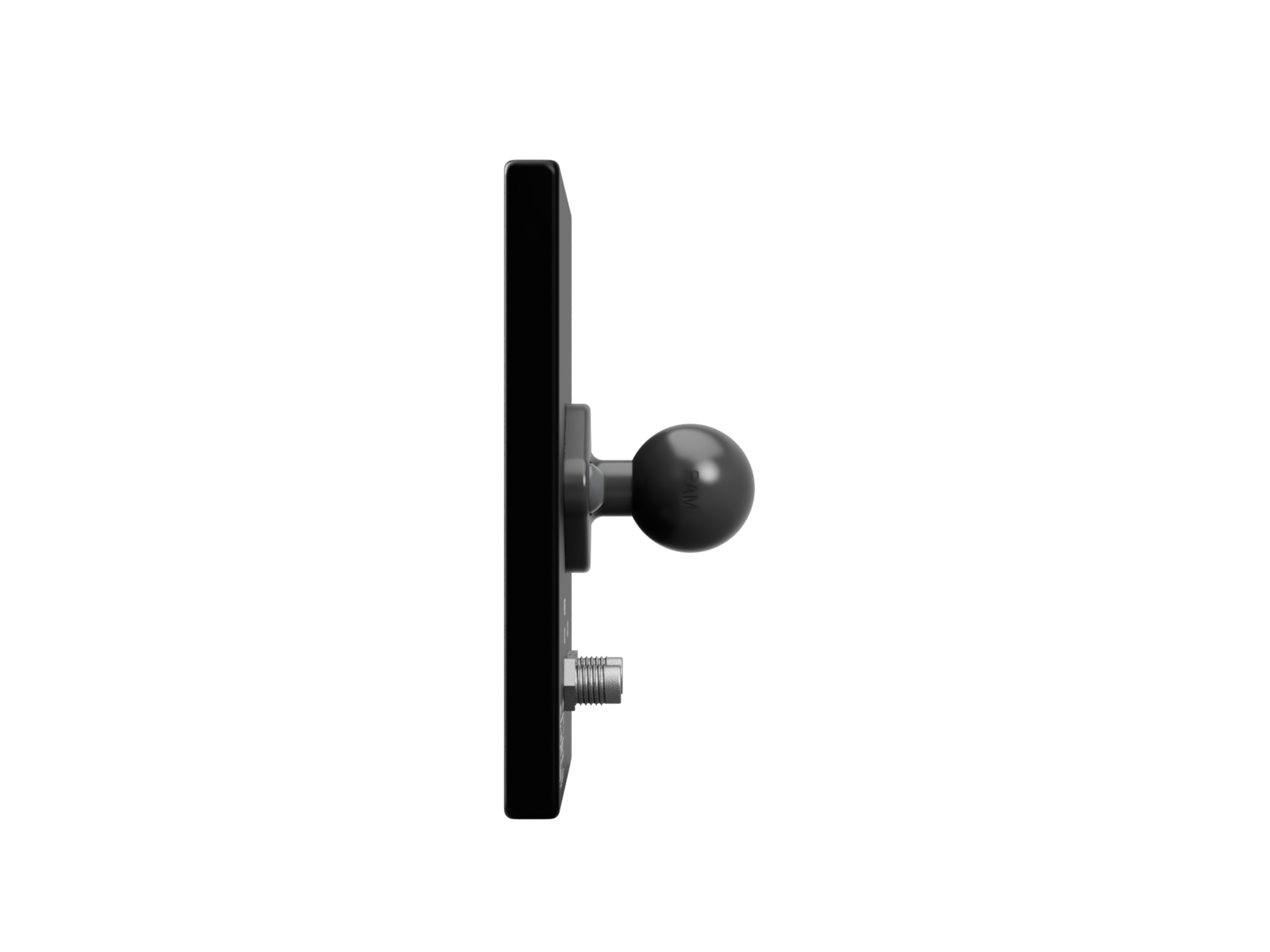

EV7_right

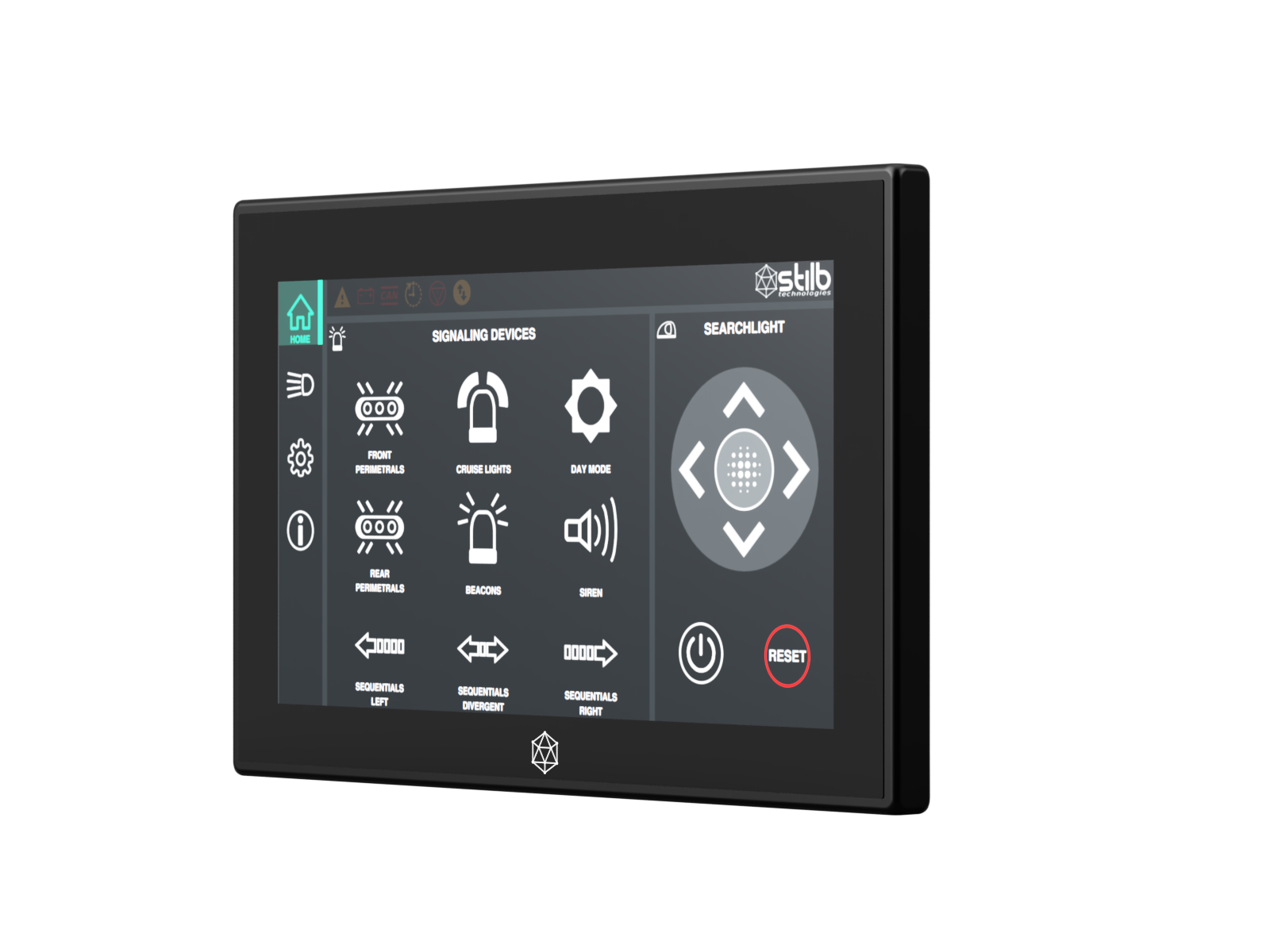

EV7_front-right
previous arrow
next arrow
EV7_front
EV7_front-left
EV7_left
EV7_back-left
EV7_back
EV7_back-rigth
EV7_right
EV7_front-right
previous arrow
next arrow

EV7

7″ user panel, CAN, RS485 and WiFi connectivity

Essence of simplicity and efficiency

Easy View EV7 is an extraordinarily compact touchscreen HMI, housed in a slim monolithic case with a small bezel making it perfect for applications with limited space.

Its astonishing speed manifests itself through a virtually instantaneous start-up time, ensuring immediate access to essential features.

With two CAN ports, RS485 and Wi-Fi connectivity options, the Easy View EV7 offers a complete solution for applications requiring fast control and access to key data.

  • Slim and compact design
  • Instant boot
  • Equipped with two CAN ports, RS485 and Wi-Fi connectivity options, the EV7 offers multiple options for flexible communications
  • Designed for applications that require clear functions and immediate accessibility

Technical Specifications

Part numberEV07R10BX
Dimension (HxLxW)184 x 118 x15 mm
Display
9 – 36V
Indicators and sensors-20 – 85°C
Audio1x buzzer 80 dB
Power supply9–32 VDC
Operative temperature-20 +60°C
Protection gradeIP64
Power consumption4W
Interfaces2x CAN-bus 2.0 up to 1Mbit/s
1x RS485
1x WiFi
